In last email, sunuw share the information of what can we do with a 100-Watt solar panel, this week we will share what else is needed to use a 100W solar system.

Is A 100-Watt Solar Panel Enough For Going Off-Grid?

Like I mentioned, a singular 100-watt solar panel is not enough for going off-grid. It’s not sufficient on its own for powering a tiny house, but a couple of them linked together could be enough for a weekend off-grid on your sailboat, RV, or campsite.

HOW MANY BATTERIES CAN A 100-WATT SOLAR PANEL CHARGE?

In my experience, I’ve found that a 100-watt solar panel can charge a single 12-volt battery in a day. In most cases, people who have a 100W solar panel use 12-volt batteries. To charge fully, the battery would call for at least eight hours of direct sunlight in optimal conditions. Meaning, the panel should be in direct sunlight, and the thermometer should be about 77˚F.

But in real life, where the weather is always changing, your 12V battery might take 10 hours or more to reach full charge via a 100W solar panel.

Ultimately, determining whether to invest in a 100-watt solar panel will depend on what you need to power and for how long. For context, with a 12V battery fully charged, you’d be able to run your small electronics for about 12 hours. Collectively, these items should take up about 100W of energy, so you’d be able to charge your laptop, smartphone, and run a Wi-fi router for most of the day.

What Else Is Needed To Use A 100-Watt Solar Panel?

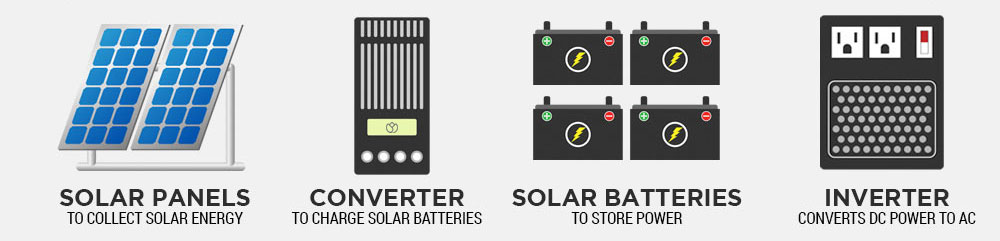

Thanks to its compact and flexible nature, a 100-watt solar panel is easy to set up and get going. You don’t need much equipment — here are the five basic components of a 100W solar panel:
• Solar Panel: A 100W solar panel is a travel-sized, easy-to-assemble device that harnesses the solar energy used for power production.

• Battery: A 12V battery is the most popular option for storing the energy captured from your 100W solar panel.

• Charge Controller: A 10A solar charge controller is the best option to regulate the current flowing from a 100-watt solar panel into the battery, preventing it from overcharging.

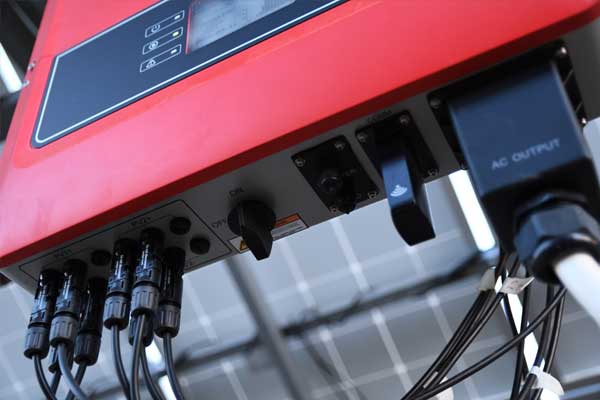

• Power Inverter: The power inverter makes the power you generate compatible with the grid. To figure out which inverter to get, doubling the wattage is a safe bet. So, a 200-watt inverter would work perfectly for a 100W solar panel.

• Wiring: Correctly sized wires are very important to the performance and safety of your solar panel system. Ideally, you should calculate your wire gauge needs to line up with your solar panel system, but, on average, a 10 AWG should do the trick for a 100-watt panel.

Many of the 100W solar panels on the market are portable. If you’re looking to install these, you will also need the hardware to help you fix it in place. Then, all you have to do is connect the solar panel to the charge controller, the charge controller to the battery, and the battery to the power inverter.

How Much Power Does A 100W Solar Panel Produce?

One of the first things I learned is that solar results can vary. It’s true that a 100-watt solar panel can produce up to 100 watts of power per hour. However, as discussed, this rating was earned in a lab with standard controlled testing conditions.

Rarely are these conditions replicated to perfection in the real world. Many factors can affect the solar panel’s output, including temperature, panel angle, and cloud cover.
Consider the fact that most areas regularly receive about three to five hours of peak sunlight every day. Therefore, on average, a 100-watt solar panel can produce 300 to 500 watt-hours of electricity in a single day. This is a ballpark number, depending on the conditions, and actual solar output can be higher or even much lower.

How Much Is 100 Watts Of Power?

Watts are a measure of power. It measures a solar panel’s performance and how much sunlight it can convert into power.
If a solar panel is rated for 100 watts then that’s the maximum power output it can reach.
100W is a modest amount of power. It’s sufficient for small kitchen appliances, charging stations, and portable electronics.
The truth is, it took me a while to understand all the terminology for going solar. You have to learn a whole new language that includes watts, volts, and amps. No worries, though — you’ll get it, and before you know it, you’ll be a solar expert too.

HOW MANY VOLTS DO 100W SOLAR PANELS PRODUCE?
A volt is a measure of the “pressure” of electricity that flows through a circuit. A typical 100W solar panel can produce anywhere from 12 to 24 volts. This is a common range for a 100-watt voltage output and can suit a wide range of applications.

HOW MANY AMPS DO 100W SOLAR PANELS PRODUCE?
An amp (short for ampere) is a measure of how much electricity runs through a circuit. A 100W solar panel can produce anywhere from 4.2 to 8.3 amps.

HOW MANY KWH DOES A 100-WATT SOLAR PANEL PRODUCE?
A 100-watt panel that operates at full capacity for an average of four hours of sunlight produces 0.4 kWh. A kilowatt-hour measures how much electrical the panel can supply. It stands for one kilowatt (or 1,000 watts) of power for one hour. In this case, a 100-watt solar panel would produce a total of 400 watt-hours.

How Many 100-Watt Solar Panels Do I Need?

Determining how many solar panels you need depends on your electricity consumption needs. Are you planning to power your entire home? If so, 100-watt solar panels are going to fall short.
Normally, a house requires 5–10kW of power to operate essential appliances. You would need 50 to 100 of these 100-watt panels to achieve that level of production, which is neither cost nor space efficient.
However, if you want to generate off-grid power for a road trip or as a backup for essential electronic devices at home, a 100-watt solar panel could be perfect to meet your needs. For RVs and boats, you would be pretty set connecting three 100W panels.

WHAT CAN A SINGLE 100W SOLAR PANEL RUN?
We’ve talked about the things a 100W solar panel can power and what I’ve successfully powered with one. If your goal is to power the electrical appliances in your home, you could potentially link several panels together, but it would be more cost-efficient to invest in higher wattage.
When considering which panel to buy, the most important criterion is to evaluate your electricity consumption to understand what you’ll require out of your solar panel.
Keep in mind that results vary. Electronic devices might be slightly different, so you’ll want to list out your needs.
I’ve had great success solar powering my devices, but it doesn’t hurt to double-check your needs before investing and counting on a 100-watt panel to do the trick.
Your Turn!
• What’s your plan for utilizing 100W solar panels?
• Have you ever used 100-watt portable solar panels while enjoying the outdoors?

SUNUW are committed to solving outdoor off-grid systems. Welcome to keep in touch with us for more information.

Thank you for your time.
